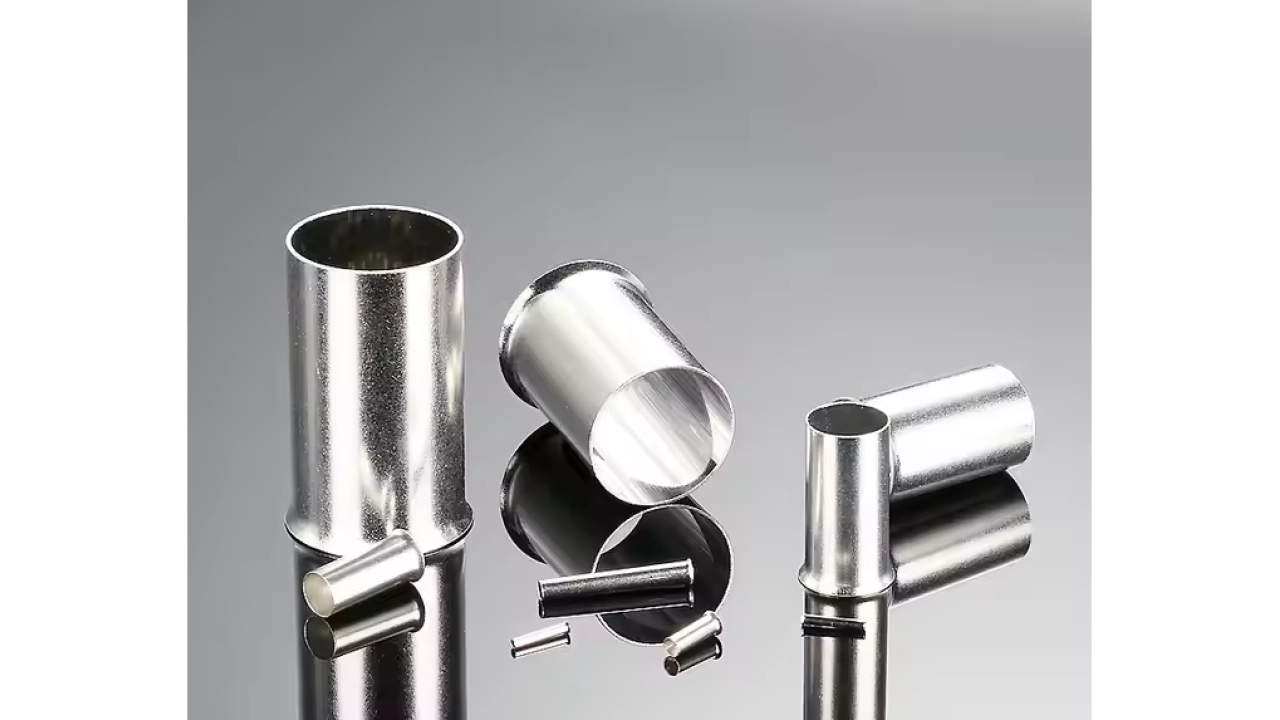

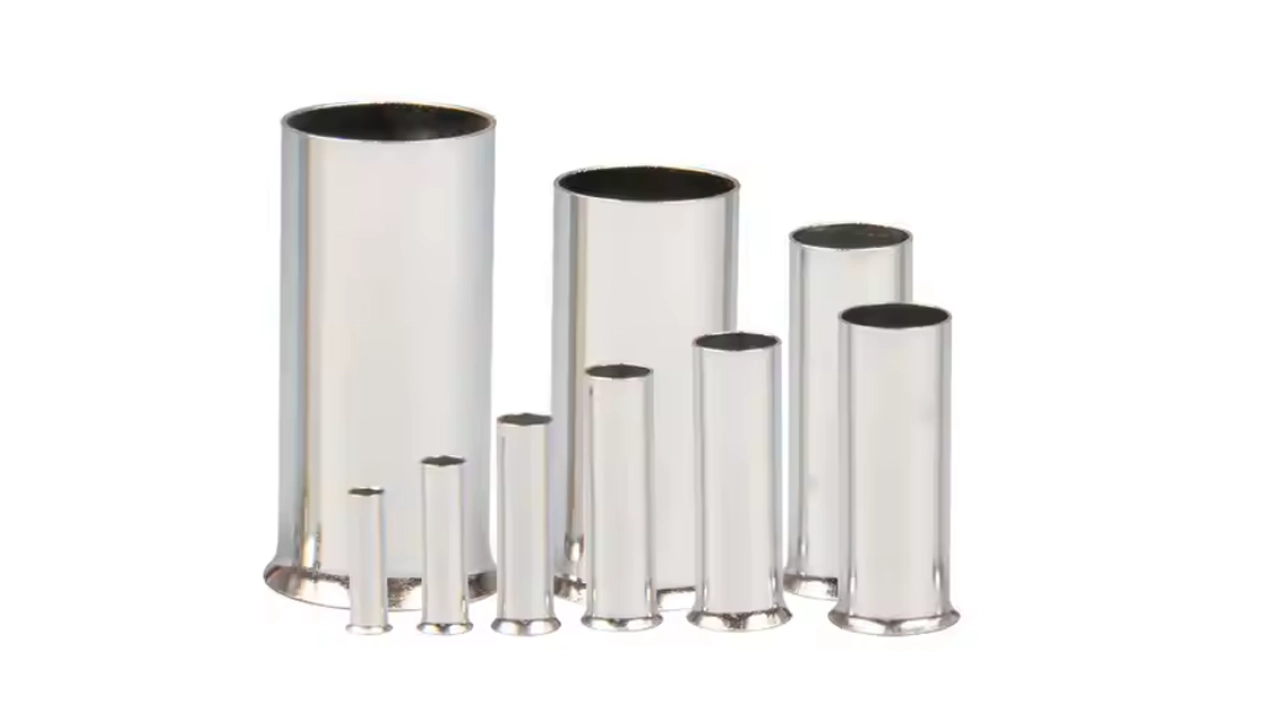

İZOLESİZ Kablo Yüksükleri – TEKNİK ÖZELLİKLER
| Ürün Kodu |
Kablo Kesiti (mm²) |
L (mm) |
W (mm) |
D (mm) |
C (mm) |
Kutu Adet |
| IY-0.50 |
0.50 |
10 |
2.1 |
1.3 |
1.0 |
2000 |
| IY-0.75 |
0.75 |
10 |
2.3 |
1.5 |
1.2 |
1000 |
| IY-1.00 |
1.00 |
10 |
2.5 |
1.7 |
1.4 |
1000 |
| IY-1.50 |
1.50 |
10 |
2.8 |
2.0 |
1.7 |
1000 |
| IY-2.50 |
2.50 |
12 |
3.4 |
2.5 |
2.2 |
1000 |
| IY-4.00 |
4.00 |
12 |
4.0 |
3.2 |
2.8 |
1000 |
| IY-6.00 |
6.00 |
12 |
4.7 |
3.9 |
3.5 |
500 |
| IY-10.0 |
10.00 |
15 |
5.8 |
4.9 |
4.5 |
250 |
| IY-16.0 |
16.00 |
15 |
7.5 |
6.2 |
5.8 |
250 |
| IY-25.0 |
25.00 |
16 |
9.1 |
7.9 |
7.5 |
100 |
| IY-35.0 |
35.00 |
16 |
10.2 |
8.7 |
8.3 |
100 |
| IY-50.0 |
50.00 |
22 |
12.7 |
10.9 |
10.3 |
50 |
