🔴 Kablo Kesiti: 0.5–1.5mm² (AWG 22–16) – Imax: 19A

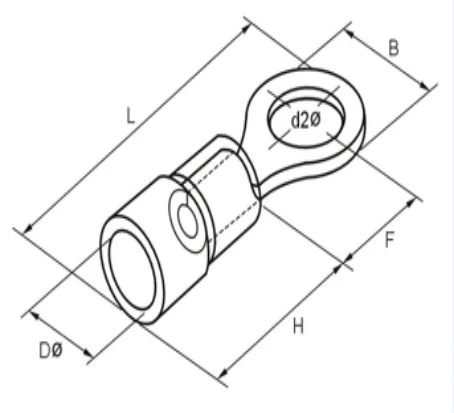

| Renk |
Model |
Vida Çapı (d2 mm) |
B (mm) |
L (mm) |
F (mm) |
H (mm) |
D ⌀ (mm) |
| 🔴 |
RV 1.25-3 |
3.2 |
5.7 |
17.8 |
4.95 |
10 |
4.3 |
| 🔴 |
RV 1.25-4 |
4.3 |
6.6 |
20.1 |
6.3 |
10 |
4.3 |
| 🔴 |
RV 1.25-5 |
5.3 |
8.0 |
21.5 |
7.0 |
10 |
4.3 |
| 🔴 |
RV 1.25-6 |
6.4 |
11.6 |
27.5 |
11.1 |
10 |
4.3 |
🔵 Kablo Kesiti: 1.5–2.5mm² (AWG 16–14) – Imax:30A
| Renk |
Model |
Vida Çapı (d2 mm) |
B (mm) |
L (mm) |
F (mm) |
H (mm) |
D ⌀ (mm) |
| 🔵 |
RV 2-3 |
3.2 |
6.6 |
20.0 |
6.5 |
10 |
4.9 |
| 🔵 |
RV 2-4 |
4.3 |
6.6 |
21.0 |
7.0 |
10 |
4.9 |
| 🔵 |
RV 2-5 |
5.3 |
8.5 |
22.5 |
7.75 |
10 |
4.9 |
| 🔵 |
RV 2-6 |
6.4 |
12.0 |
27.6 |
11.0 |
10 |
4.9 |
| 🔵 |
RV 2-8 |
8.4 |
12.0 |
27.6 |
11.0 |
10 |
4.9 |
| 🔵 |
RV 2-10 |
10.5 |
13.6 |
30.2 |
13.9 |
10 |
4.9 |
| 🔵 |
RV 2-12 |
13.0 |
19.2 |
35.4 |
16.0 |
10 |
4.9 |
🟡 Kablo Kesiti: 4–6mm² (AWG 12–10) – Imax: 48A
| Renk |
Model |
Vida Çapı (d2 mm) |
B (mm) |
L (mm) |
F (mm) |
H (mm) |
D ⌀ (mm) |
| 🟡 |
RV 5.5-4 |
4.3 |
9.5 |
25.5 |
8.3 |
12.5 |
6.7 |
| 🟡 |
RV 5.5-5 |
5.3 |
9.5 |
25.5 |
8.3 |
12.5 |
6.7 |
| 🟡 |
RV 5.5-6 |
6.4 |
12.0 |
31.5 |
13.0 |
12.5 |
6.7 |
| 🟡 |
RV 5.5-8 |
8.4 |
15.0 |
33.7 |
13.7 |
12.5 |
6.7 |
| 🟡 |
RV 5.5-10 |
10.5 |
15.0 |
33.7 |
13.7 |
12.5 |
6.7 |
| 🟡 |
RV 5.5-12 |
13.0 |
19.2 |
38.1 |
16.0 |
12.5 |
6.7 |
